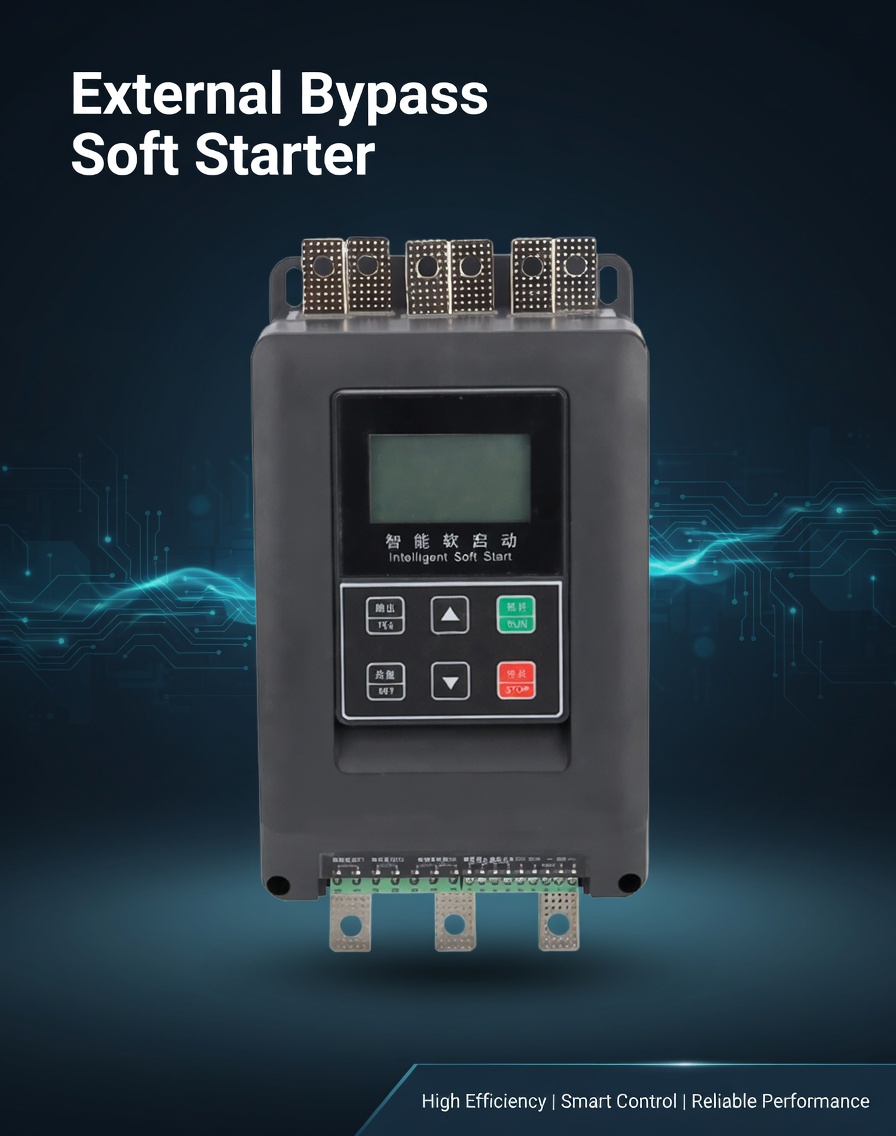

External Bypass Soft Starter

External Bypass Soft Starters: When to Use Them, How They Work, and What to Verify Before Ordering

Choosing a soft starter for a three-phase motor usually comes down to one practical decision: built-in bypass or external bypass. Both approaches can deliver smooth acceleration and reduced starting current, but an external bypass soft starter is often the better fit when you want a clean balance of cost, durability, and easy service in the field. Below is a straightforward way to think about where external bypass makes sense—and what details to confirm before you purchase online.

Why an external bypass is useful in real installations

A soft starter does the hard work during startup by controlling motor voltage through power electronics. Once the motor reaches full speed, a bypass contactor can take over the running current. In day-to-day operation, this setup brings a few tangible benefits:

• Lower internal heat during continuous running, which supports longer component life
• A strong option for long duty cycles, especially on pumps and ventilation systems
• Simpler maintenance: the bypass is typically a standard industrial contactor
• More flexible panel design for MCCs and control cabinets (you size the bypass device to your project)

In practice, less heat and simpler serviceability are the two reasons many buyers prefer external bypass designs for industrial environments.

Typical applications for external bypass soft starters

External bypass soft starters are commonly specified for loads where smooth starting reduces stress and keeps the electrical system stable, including:

• Pumps (helps reduce pressure spikes and mechanical shock)
• Fans and blowers (steadier ramps, fewer voltage dips on startup)
• Compressors (more controlled starting torque, less strain on belts/couplings)
• Conveyors and general machinery where gradual acceleration improves uptime

What to check before buying an external bypass soft starter online

Most "it looked right on paper" issues come from missing one of the details below. Confirm these items upfront to avoid mis-sizing and commissioning delays:

1. Motor rated current (FLA) and motor power rating, plus line voltage/frequency
2. Load characteristics and starting demand (light/medium/heavy start, inertia, back pressure)
3. Expected starts per hour and installation conditions (ambient temperature, enclosure ventilation)
4. Control and integration needs: 2-wire/3-wire, dry contact inputs, analog control, or communication (if required)
5. Protection expectations: overload class/curve, phase loss/imbalance, under/overvoltage, jam/stall behavior

These checks take minutes and can save days of on-site troubleshooting.

For many three-phase motor systems, an external bypass soft starter is a smart, economical choice: smooth starts, cooler running after bypass, and straightforward panel integration using standard components. And if you're buying for stocking, OEM builds, or projects with repeat orders, supplier consistency matters as much as the rating on the label. Xnhang, as an External Bypass Soft Starter Wholesaler, supports distributors and panel builders with stable supply, practical model selection, and products designed to commission cleanly across common industrial loads.
