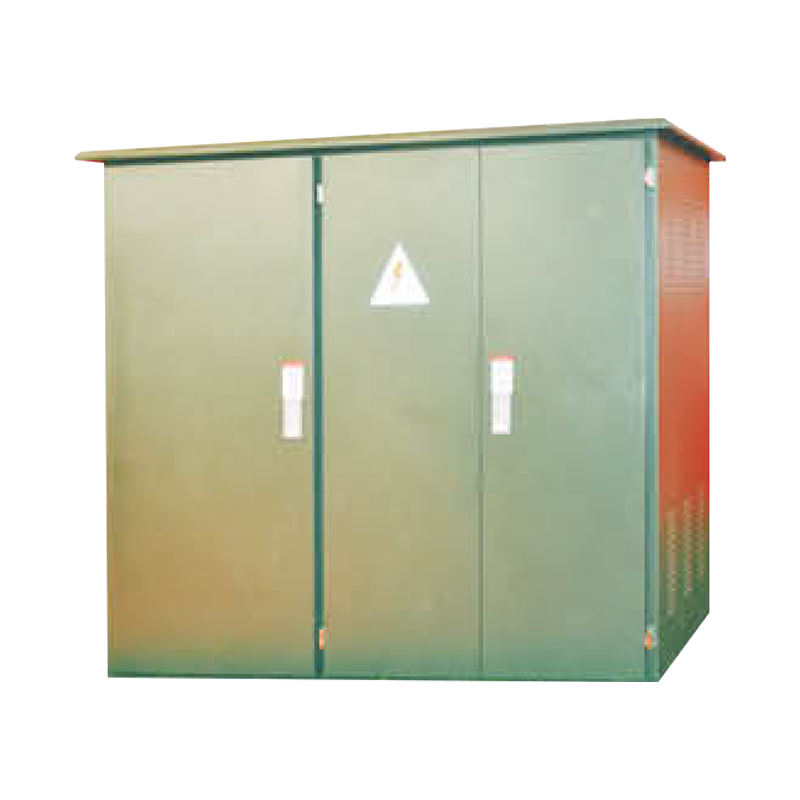

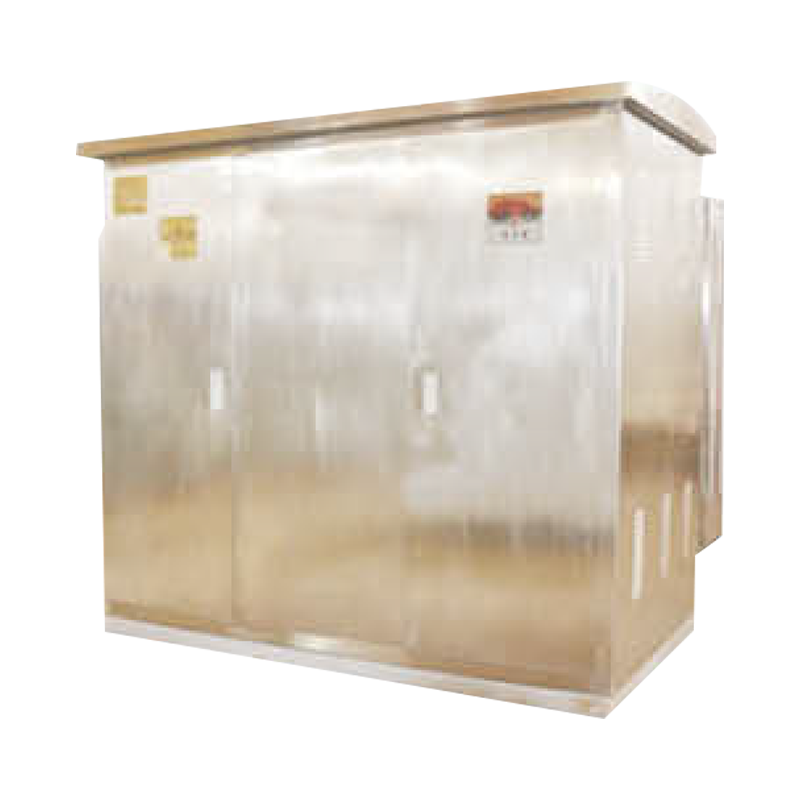

ZGS11-12 American Prefabricated Substation

Typical Applications

• New residential developments: pre-installed at the planning stage so power is ready before residents move in, without a dedicated substation building.

• Green spaces, parks, and public landscaping projects: low visual footprint keeps the equipment from disrupting the surrounding design.

• Railway stations and transportation hubs: compact size fits tight platform-adjacent or trackside spaces.

• Hotels and commercial buildings: quiet operation and small footprint make it suitable close to occupied spaces.

• Construction sites: fast deployment for temporary power during the build phase, removable once the project is done.

• Airports and industrial facilities: reliable outdoor power for dispersed, large-site infrastructure.

• Urban and rural grid reconstruction / distribution network upgrades: replaces older pole-mounted or room-based substations where space is limited.

What these applications have in common: sites where space is tight, a full substation building isn't practical, and the buyer needs a sealed, low-maintenance unit that can sit outdoors for years without issue.

Core Functions

1. Compact, space-saving structure: the common-tank design (transformer + switchgear in one sealed oil tank) takes up only about one-third to one-fifth of the space of a conventional substation with the same capacity, with a notably lower height.

2. Fast installation, low maintenance: arrives fully factory-assembled; on-site work is limited to incoming/outgoing cable connection and earthing. The fully sealed, oil-immersed design means there's no exposed live equipment to service regularly.

3. Full insulation and sealing for safety: all high-voltage live parts sit inside the oil tank, with no exposed live components — built for safe operation in public and residential areas.

4. Electronic phase-loss protection: automatically disconnects the main switch on the low-voltage side if an abnormal voltage condition is detected, protecting downstream equipment.

5. Anti-theft protection: integrated into the enclosure design to prevent unauthorized access to internal components.

6. Honeycomb double-layer composite enclosure: provides both thermal insulation and efficient heat dissipation, helping the unit handle temperature swings and overload conditions.

7. Dual-fuse full-range protection on the high-voltage side: lowers protection-related costs while improving system safety, and supports both ring-network and terminal power configurations.

8. Quick-connect cable heads: 200A-rated connectors allow emergency plug-and-play cable connection/disconnection under load.

Technical Parameters

Why B2B Buyers Purchase This Product

• Launching a private label: rebranding a compact American-style substation line for sale through local electrical distributors or utility contractors, particularly in markets where "American-style" pad-mounted substations are the standard rather than European box-type units.

• Bulk/wholesale supply: electrical equipment traders and engineering contractors sourcing in volume for grid upgrade projects, residential developments, or infrastructure bids.

• Cost optimization: sourcing a fully-assembled compact substation directly from Yueqing, China — known as "China's Electrical Capital" — instead of local fabrication, while keeping the same functional standard (metering, protection, compensation, control).

For the end customer, the core problem this product solves is: fitting a complete 10kV-to-LV power station into a much smaller footprint than a conventional substation, with a sealed, low-maintenance design that holds up outdoors for years — particularly valuable in space-constrained urban or residential developments where a full substation room isn't an option.

OEM / ODM Support

• Enclosure finish, nameplate, and branding can be customized to your specifications.

• Transformer capacity, voltage class, and cable connector configuration can be adjusted to match your project or destination-market requirements.

• Support for customer-supplied drawings or technical specifications for fully custom production runs.

• We can coordinate test reports and documentation to support your local certification process (exact scope subject to discussion based on destination market).

Common Customer Pain Points We Solve

Who This Product Is For

This is an industrial-grade 10kV-class power distribution unit intended for buyers with electrical engineering expertise, including: electrical equipment distributors and traders, utility and grid contractors, real estate and property developers, industrial park operators, and infrastructure project contractors.

This product is not suitable for residential users, individual consumers, or small retail shops. Installation and wiring must be carried out by a licensed electrician and must comply with local grid connection and safety regulations. If you are an individual or non-professional buyer, please contact your local utility provider for an appropriate solution.

FAQ

How is this different from a European-style box substation?

The main difference is internal structure. A European-style unit keeps the high-voltage cabinet, transformer, and low-voltage cabinet in separate compartments. The ZGS11-12 submerges the high-voltage switch and fuse directly in the transformer oil tank, which is what allows it to be significantly more compact.

Can it be reconfigured between ring-network and terminal power supply on site?

Yes. The unit supports both configurations, and the 200A-rated cable connectors allow quick plug-and-play reconnection, including under load in emergency situations.

What's the typical lead time?

Lead time depends on transformer capacity, voltage class, and order quantity. Please share your project requirements so our engineers can confirm.

What's the minimum order quantity?

We support single-unit orders for individual projects as well as bulk trade orders. Please confirm MOQ with our sales team based on your specific needs.

Does the product meet the certification standards required in our market?

Certification scope depends on the exact configuration and your country's requirements. Please share your certification needs and we'll confirm what documentation is available.

Do you offer OEM private-label production?

Yes. Enclosure branding, nameplates, and other details can be customized — happy to discuss specifics before you place an order.

How is the unit maintained over its service life?

Because the high-voltage components are fully sealed and oil-immersed, routine maintenance needs are minimal compared to open-air switchgear. Specific inspection intervals depend on the transformer oil type and local operating conditions — please consult our engineers for a maintenance schedule matched to your climate.

For a complete technical scheme catalog, quotation, or configuration advice, please contact our engineering team — we'll provide one-on-one technical support based on your project requirements.
