LR800 Online Soft Starter Cabinet

LR800 Series Enclosed Online Soft Starter Cabinet

Unlike traditional soft starters—which switch to a bypass contactor once the starting sequence is complete—the LR800 series of enclosed, "in-line" soft starter cabinets keeps its power electronic components continuously engaged within the circuit. This "in-line" design facilitates smoother acceleration and deceleration processes, ensures precise control under variable load conditions, and provides consistent, continuous protection throughout the entire operational cycle.

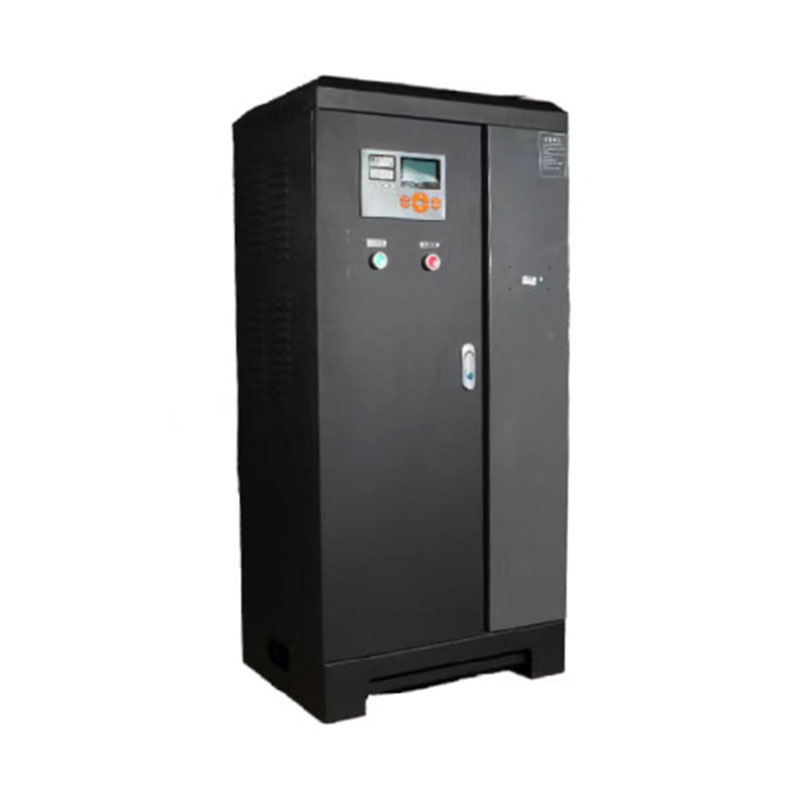

The control cabinet features a robust, powder-coated metal enclosure that integrates the soft starter unit, control system, cooling fans, and a user-friendly, door-mounted operator interface. A built-in LCD screen displays real-time operational data—such as current, voltage, power factor, and fault status—while simple "Start/Stop" control buttons significantly streamline daily operations. Furthermore, an optimized ventilation and forced-air cooling system ensures reliable performance, even in demanding industrial environments.

The LR800 series is available in a range of power ratings and corresponding cabinet dimensions, designed to meet the diverse application needs of various industrial motors while prioritizing ease of installation. Pre-drilled mounting holes and ample internal wiring space ensure simple, efficient deployment—whether in new construction projects or during the retrofit and upgrade of existing equipment.

Power Range and Cabinet Dimensions (Typical Values)

The system is equipped with a comprehensive suite of protection and control functions tailored specifically for real-world industrial environments. These features include adjustable start/stop ramps, current limiting control, phase loss detection, overload and over/under-voltage protection, as well as thermal status monitoring. Since the system remains continuously active throughout the motor's operation, it is capable of constantly monitoring operating conditions and responding rapidly to anomalies. This effectively mitigates operational stress on the equipment, thereby preventing costly losses resulting from unexpected downtime. Whether for the retrofitting of existing Motor Control Center (MCC) rooms or for new motor control installations, the LR800 stands as a reliable and robust choice. If you are seeking a complete soft-starter cabinet solution—one that features simple wiring, ease of monitoring, and a design specifically engineered to minimize equipment wear, reduce downtime, and optimize the motor starting process—the LR800 is undoubtedly the ideal choice for you.
