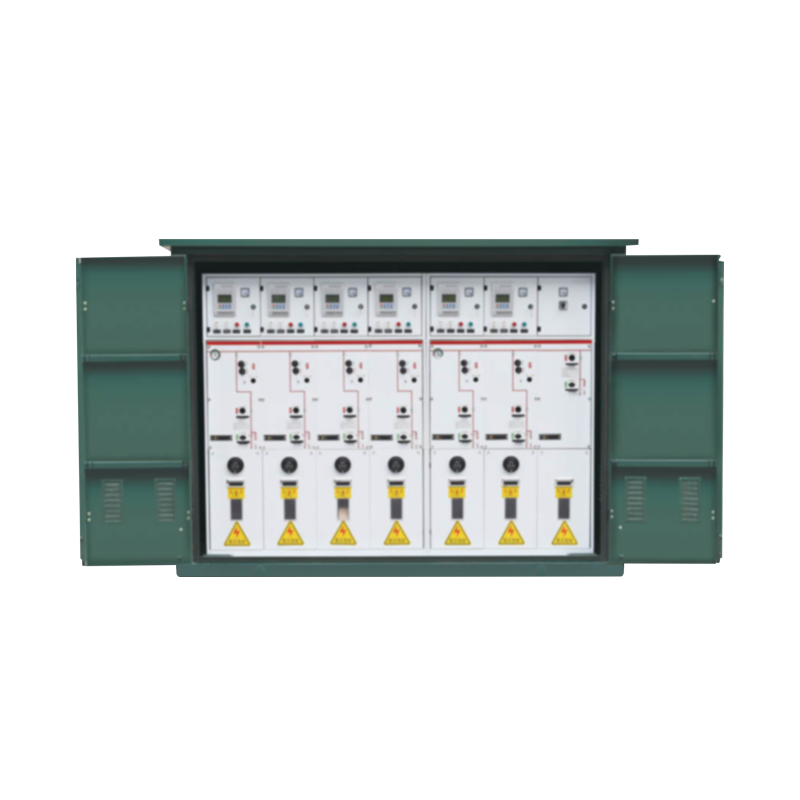

DFWK-12 Cable Branch Box

Technical parameters

Typical wiring scheme

model	Line number description	Wiring diagram for one time	Appearance dimensions (length x width x height)
DFWK-102K	One entry and two branches with one switch		1180×1050×1600
DFWK-102K	One switch is included in the first three branches		1250×1050×1600
DFWK-104K	One switch is included in the four-branch		1250x1050×1600
DFWK-112K	One in and one out two branches with one switch		1350x1050x1600
DFWK-113K	One in and one out three branches with one switch		1420x1050×1600
DFWK-114K	One in and one out four branches with one switch		1420×1050×1600
DFWK-102K2	One entry and two branches with two switches		1350×1050×1600
DFWK-112K2	One in and one out two branches with two switches		1500×1050×1600
DFWK-103K3	—Enter three branches with three switches		1850×1050×1600
DFWK-113K3	One in and one out three branches with three switches		2000×1050×1600

Key Features and Advantages

Fully Enclosed and Insulated Design

The Cable Branch Box adopts a prefabricated, live-touchable silicane rubber cable termination, ensuring a fully sealed and fully insulated structure. This design eliminates exposure to external elements, significantly enhancing safety and reliability. The enclosed system also prevents dust, moisture, and other contaminants from affecting performance, ensuring stable operation under different environmental conditions.

Enhanced Safety and Maintenance-Free Operation

One of the protrude advantages of the Cable Branch Box is its safety-focused design. The live-touchable silicane rubber cable termination ensures operator safety during handling and maintenance. Additionally, its maintenance-free operation reduces the need for regular serving, to a lesser extent downtime and operational costs while providing a reliable power distribution solution.

Compact and Durable Construction

The Cable Branch Box features a compact and aesthetically pleasing design. Its stainless steel double-layer enclosure enhances durability, providing good resistance to corrosion, harsh weather conditions, and mechanical impact. With a lifespan of over 20 years, this product is built for long-term performance, reducing the need for frequent replacements and ensuring cost-effectiveness for power distribution systems.

Flexible Power Distribution with Multiple Branches

Designed for versatility, the Cable Branch Box supports a variety of connection configurations. It can be equipped with one or more SF6 load break switches, offering enhanced switching capabilities. The system accommodates up to eight outgoing branch circuits, making it adaptable to diverse power distribution requirements. This flexibility allows for efficient network expansion and modification without affecting the main grid's operation.

Minimized Power Outages and Improved Maintenance Efficiency

A key benefit of the Cable Branch Box is its ability to facilitate localized power shutdowns without disrupting the main network. This feature significantly reduces outage areas, enabling quick and efficient maintenance operations. By allowing targeted repairs and upgrades, the Cable Branch Box improves overall power distribution reliability while ensuring uninterrupted service to unaffected areas.

Optional Accessories for Enhanced Performance

The Cable Branch Box can be customized with additional accessories to meet specific operational needs. Available options include surge arresters, short-circuit fault indicators, and current-limiting fuses, further enhancing system protection and fault detection capabilities. These accessories improve network resilience, ensuring rapid fault identification and response to minimize downtime.

Applications

The Cable Branch Box is widely used in urban and rural power distribution networks, industrial parks, commercial centers, and infrastructure projects. Its compact design makes it particularly suitable for areas with space constraints, while its robust construction ensures reliable operation in challenging environments.

With its fully enclosed and insulated design, maintenance-free operation, compact yet durable construction, and flexible power distribution capabilities, the Cable Branch Box is a highly efficient and reliable solution for modern power distribution systems. By enhancing safety, to a lesser extent power outages, and offering adaptable configurations, this product provides long-term value for electric networks. Whether used in urban or industrial settings, the Cable Branch Box ensures consistent and secure power distribution, meeting the evolving demands of the energy sector.
