JP Outdoor Integrated Distribution Box

Technical parameters

Key Features and Benefits
1. Compact and Durable Design The JP Outdoor Integrated Distribution Box is designed with a compact, aesthetically pleasing structure, ensuring that it doesn’t take up unnecessary space while maintaining a clean appearance. The box is made from high-quality materials, including 2mm thick stainless steel or composite steel plates with a honeycomb structure. This design ensures that the distribution box is resistant to environmental factors such as fire, heat, and condensation. The box's high-strength construction, combined with a smooth surface and no visible welding seams, enhances both its durability and aesthetic appeal.

2. Versatile Functionality One of the protrude features of the JP Outdoor Integrated Distribution Box is its multifunctionality. It provides seamless integration of metering, power distribution, and reactive power compensation in a single unit. This makes it ideal for various applications in outdoor environments, especially in the transformation of urban and rural power grids.

3. Robust Protection Features To ensure safe and reliable operation, the JP Outdoor Integrated Distribution Box is equipped with essential protection features. It provides protection against short circuits, overloads, overvoltage, and leakage, ensuring that electrical systems remain stable and safe. This makes it suitable for use in areas with fluctuating power loads and harsh environmental conditions.

4. Environmentally Resistant The JP Outdoor Integrated Distribution Box is built to withstand a wide range of environmental conditions. It operates effectively in temperature ranges between -25°C and 40°C and can withstand relative humidity levels of up to 90%. Further, it is designed for installation at altitudes not exceeding 2000 meters. This makes it ideal choice for use in diverse geographic locations, from urban centers to remote rural areas, without compromising its performance.

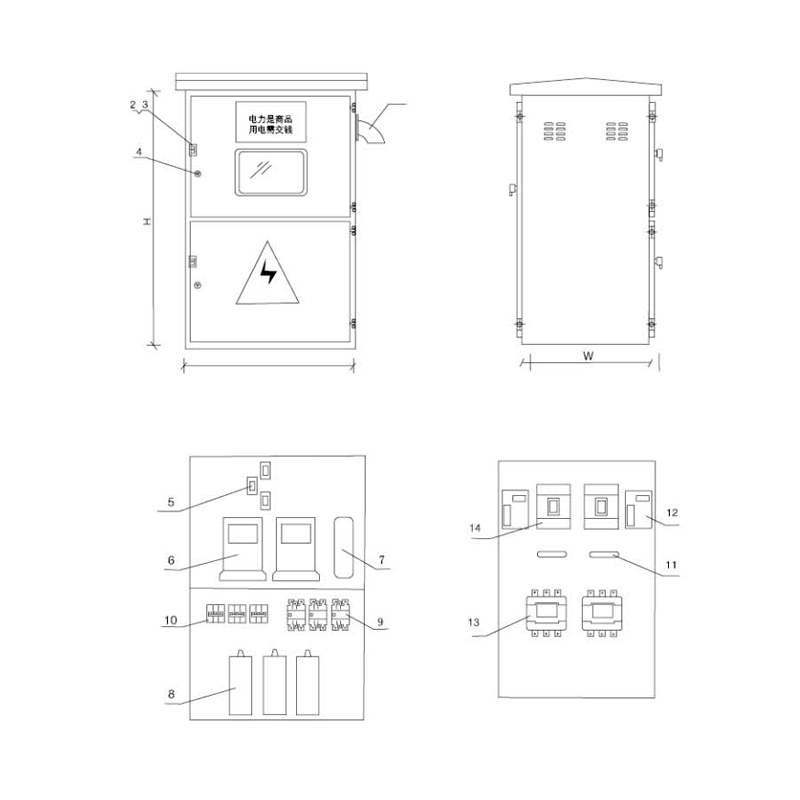

5. Easy Installation and Maintenance Installation and maintenance of the JP Outdoor Integrated Distribution Box are made easy thanks to its user-friendly design. The box features a front and rear door structure, allowing easy access for both operation and inspection. The doors are sealed with high-elasticity, aging-resistant sealing strips, ensuring a tight seal that prevents moisture or dust from entering. Additionally, the box is equipped with both visible and concealed locks for enhanced security, with an anti-rust rain shield for the visible lock. These thoughtful design elements ensure that the distribution box remains protected and easy to operate under various weather conditions.

6. Enhanced Safety and Reliability The JP Outdoor Integrated Distribution Box is designed with safety in mind. The metering room is fully enclosed and comes with a lead-seal device to prevent unauthorized access. The box also features a cable entry point designed to prevent rainwater and debris from entering the system, and it is equipped with a ventilation system and mesh at the top for proper airflow and to prevent overheating. The overall protection rating of IP54 ensures the box is dustproof, waterproof, and resistant to foreign objects, making it suitable for all outdoor conditions.

The JP Outdoor Integrated Distribution Box stands out as a reliable and cost-effective solution for outdoor electric distribution. Its multifunctional capabilities, durable design, and robust protection features make it a top choice for modern power grids.
