MNS Low-Voltage Withdrawable Switch Cabinet

Fixed type

Compact Design with High Functionality

One of the protrude features of the MNS low-voltage withdrawable switch cabinet is its compact design. Although its small footprint, it can accommodate numerous functional units, to a greater extent the use of space. The cabinet's modular construction allows for flexible and adaptable configurations, making it suitable for diverse environments and requirements. The system employs a 25mm module design for C-shaped profiles, which can fulfill a range of structural forms, protection levels, and environmental conditions.

Versatile Assembly and Modular Configuration

The MNS low-voltage switch cabinet is designed with flexibility in mind. The modular design allows for easy assembly of various standard units, such as protection, operation, conversion, control, regulation, measurement, and indication. With over 200 available assembly components, users can create custom configurations, including fixed partitions or drawer-type units.

Enhanced Safety Features

Safety is a priority in the MNS system. It incorporates high-strength, flame-retardant engineering plastic components, ensuring robust protection for both users and equipment. These materials help enhance the overall safety of the switch cabinet, particularly in environments where fire hazards or electric faults are a concern. Additionally, the cabinet’s design relatively small the risk of electric accidents by providing clear and easily accessible protection mechanisms.

Cutting-Edge Technical Performance

The MNS low-voltage withdrawable switch cabinet is designed to meet high technical standards. With a rated insulation voltage of 690V and a working voltage of 400V, the MNS system can withstand high electrical loads. The main busbar can carry a the largest current of 6300A, with short-circuit withstand capacity reaching 100kA and peak withstand current up to 220kA. The vertical distribution busbar also supports substantial current levels, ensuring reliable performance even under high-demand conditions.

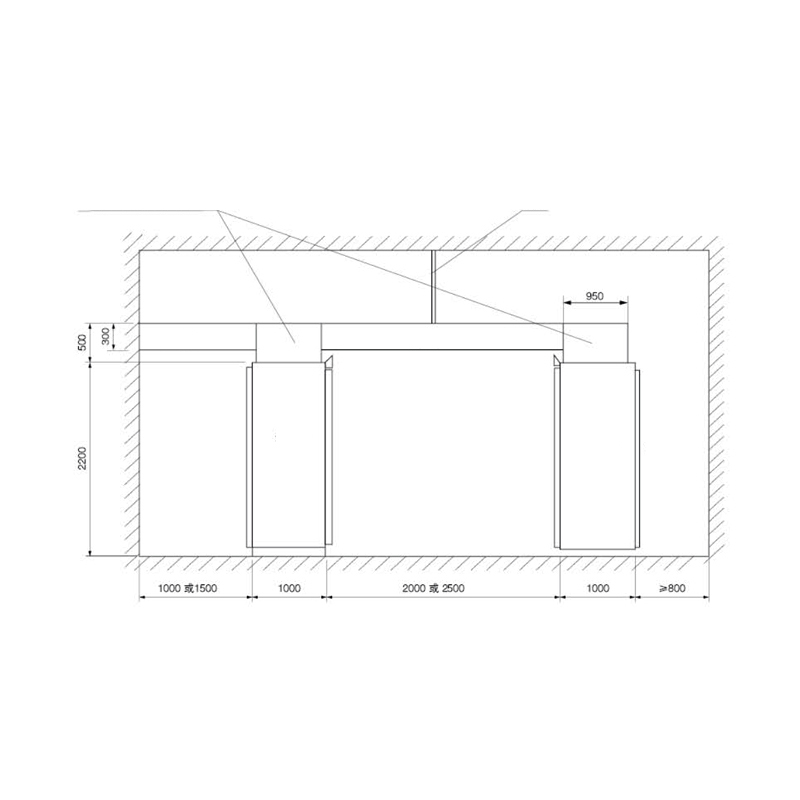

Space-Saving and Easy Assembly

The MNS system’s modular design not only enhances its versatility but also contributes to space efficiency. The high degree of standardization significantly reduces the storage and transportation space needed for pre-fabricated parts. Moreover, assembly is straightforward and does not require specialized tools, reducing installation time and costs. The ease of assembly also relatively small downtime during system upgrades or maintenance.

Durable and Reliable for Harsh Environments

The MNS low-voltage withdrawable switch cabinet is built to perform reliable in various environmental conditions. It can operate in a temperature range of -5°C to 40°C and is designed to handle relative humidity levels up to 90% at 25°C. The cabinet is rated for indoor use and is capable of withstanding seismic forces up to a magnitude of 8, making it ideal for regions prone to earthquakes. Further, it can be transported and stored in temperatures ranged from -25°C to 55°C, ensuring that it remains operational under special conditions.

The MNS low-voltage withdrawable switch cabinet offers a comprehensive, flexible, and safe solution for electric distribution needs across multiple industries. Its modular design, enhanced safety features, and high technical performance make it a reliable choice for factories, offshore platforms, and ships.
